500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS

Certificado
CHINA Qingdao Kingway Industry Co., Ltd. Certificações
CHINA Qingdao Kingway Industry Co., Ltd. Certificações
Estou Chat Online Agora

500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS

500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS
500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS 500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS 500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS 500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS 500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS 500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS

Imagem Grande :  500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS

Detalhes do produto:
Lugar de origem: Shandong, China
Marca: KingWay
Número do modelo: KL500
Condições de Pagamento e Envio:
Preço: $150,000.00/units >=1 units

500KW/500KVA AC Automatic Resistive Load Bank 400v 3 Phase 4 Wire for testing Generator & UPS

descrição
Voltagem nominal: 400 V Velocidade: 1500 RPM
Frequência: 50 Hz Sistema de arranque: 24 V DC de arranque elétrico
Tipo: Tipo silencioso Tipo de sistema de arrefecimento: Sistema de refrigeração do ar
Utilização: Gerador de ensaio e UPS Garantia: 3 meses-1 ano

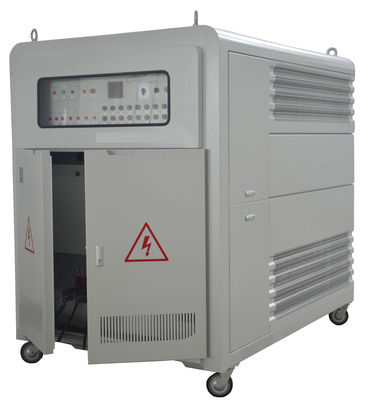

Kingway Resistive Load Bank



A load bank is a piece of electrical test equipment used to simulate an electrical load, to test an electric power source without connecting it to its normal operating load. During testing, adjustment, calibration, or verification procedures, a load bank is connected to the output of a power source, such as an electric generator, battery, servo amplifier or photovoltaic system, in place of its usual load.



Kingway load bank are designed for both portable and permanently installed applications and can confidently withstand everyday use in a demanding industrial or rental environment, testing range10-5000KW .



Item Technical Parameter
Rating voltage/frequency 400V power 1000kW; 3 phase 4 wire,50Hz
Max Load Power 400kW

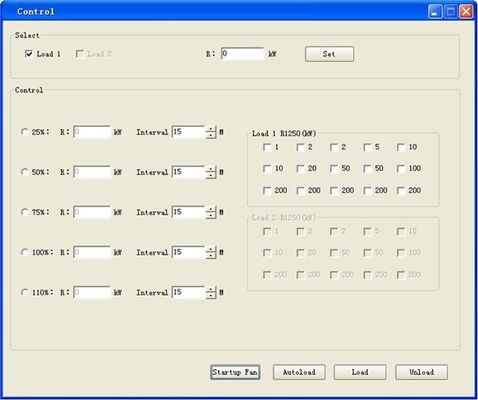

Load Steps 1, 2, 2, 5, 10, 10, 20, 50, 100, 200, 200, total 400kW.
Power Factor 1
Load Tolerance (each step) ±5%
Load Tolerance (overall) ±3%

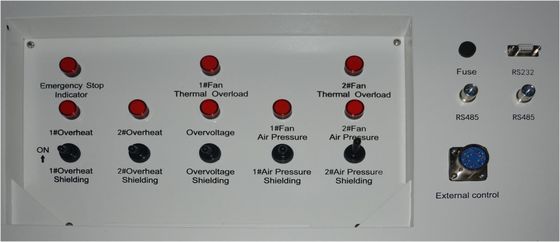

Display Meter Multiple function meter
Fan Control Power External power 400V 3 phase 4 wire 50Hz

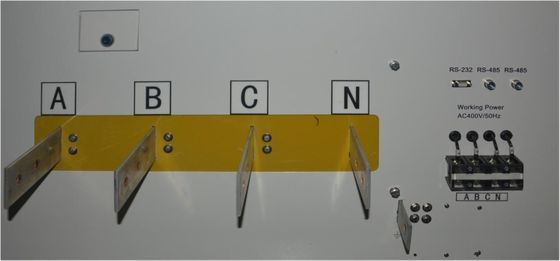

Wire Connection Load bank input——busbar (star coupling “Y”) Control power input——terminal block
Communication Interface RS232/RS485
Insulation F
Way of Working Continuous Working
Cooling Forced air, horizontal air intake and upwards exhaust cooling
Transportation With lifting eyes and wheel castors
Color As customer’s requirements or as our design
Dimensions For 400kW load bank: 2440*1400*1680mm (L*W*H)
Weight About 1500kgs
  Operating Environment Parameter
Ambient Temperature -10°C~+50°C
Relative Humidity ≤95%
Atmospheric Pressure 86~106kPa
Workplace Indoor
  Brands of Main Components
Contactor Schneider
Fuse MIRO
PLC Siemens

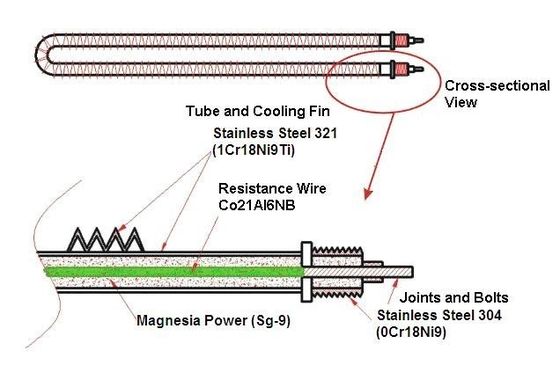

Alloy Resistor Kingway

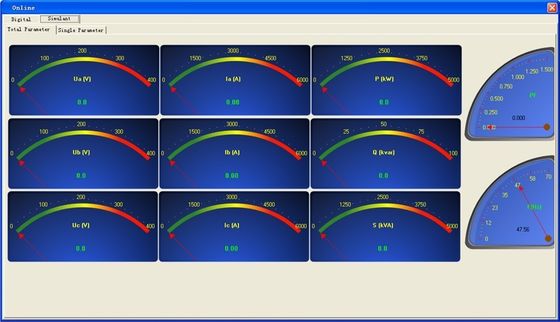

Data Processing Software Kingway
