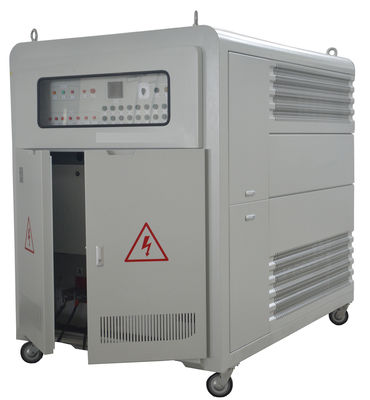

700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing

Certificado
CHINA Qingdao Kingway Industry Co., Ltd. Certificações
CHINA Qingdao Kingway Industry Co., Ltd. Certificações
Estou Chat Online Agora

700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing

700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing
700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing 700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing 700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing 700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing 700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing 700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing

Imagem Grande :  700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing

Detalhes do produto:
Lugar de origem: Shandong, China
Marca: Kingway
Número do modelo: KL800
Condições de Pagamento e Envio:
Preço: $26,000.00/units >=1 units

700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing

descrição
Voltagem nominal: 400 V Velocidade: 1500 RPM
Frequência: 50 Hz Sistema de arranque: Começo remoto
Tipo: tipo portátil Tipo de sistema de arrefecimento: Sistema de refrigeração do ar
Fator de potência: 1.0 Carga Resistive: 11 passos
Potência de resistência: 1000 kW/1000kva Poder aparente: 1000 quilowatts
Interface de comunicação: RS232/RS485 Contactor: Schneider
fusível: MIRO PLC: Cientistas
Resistência de aliado: - O que foi? Software de processo de dados: - O que foi?
Garantia: 3 meses-1 ano

Digital AC Portable Resistive Three-Phase Load Banks

Lead times are currently less than 3 months!

Three-phase model options range from small, portable, low-power units, to high-power, indoor & outdoor permanent resistive load banks. Models come standard with push-button manual controls as well as PC software controls offering advanced load profile solutions for working with complex testing applications.  Units are suitable for various uses including testing of generators, UPS systems, data center power systems, power supplies, HVAC systems, and other critical power sources. Single-phase load bank models also available.

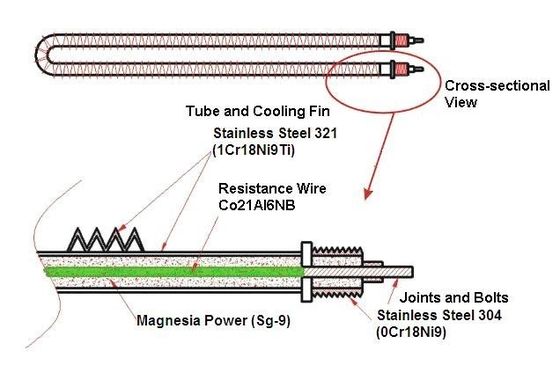

Design elements incorporate a robust steel outer chassis with isolated interior chambers for control and load elements. This ensures electrical components are kept away from dirt and debris for long-life reliability in harsh test environments. Portable options include lifting eyes and caster wheels while permanent and outdoor rated units are available. All resistive load banks come with multiple built-in automatic safety shutdowns and manual override shutdown.

Benefits

  • Digital metering for high-precision data read-out

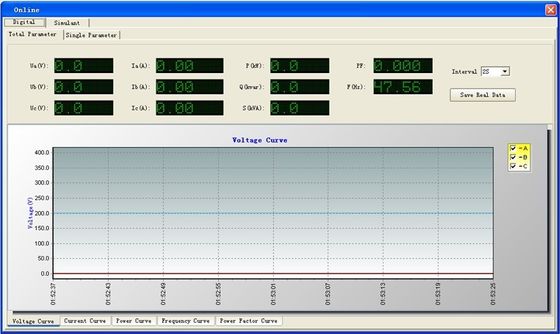

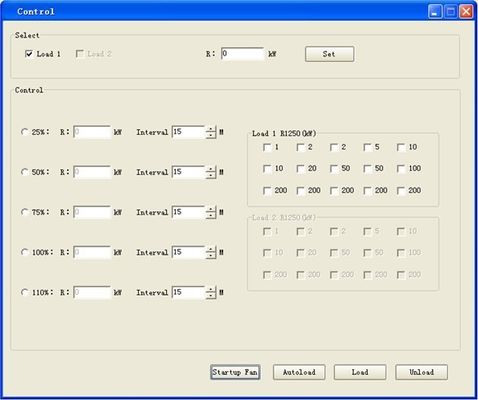

  • User controlled manually or through software with programmed load profile
  • Detailed data management, analysis, and report generation through software
  • Automatic load testing allows user to set custom periods of power and time
  • Display of current, voltage, power, power factor, frequency, and time
  • Emergency manual stop button for quick termination of load test
  • Automatic stop protection for adverse conditions including over-load, over-voltage, high temperature, short-circuit
  • Optional serial RS-485 Modbus controls
  • Optional dry contact terminal controls
  • Optional outdoor rated enclosures (available on models over 100kw)

Voltage Versions

 240, 400, 480  VAC

kW Models

1,2,2,5,10, 20,30, 40, 50, 100, 200, 300, 500, 800 & 1000 kW

Frequency

50/60 Hz

Resolution

1 kW

Configuration

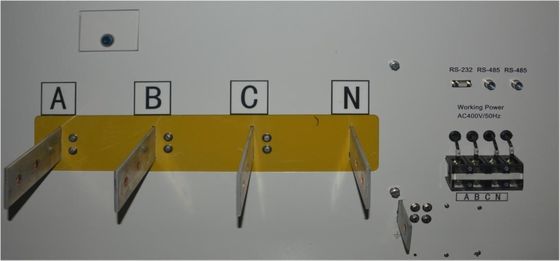

Three Phase, 4 Wire Wye or 3 Wire Delta connection available

700 kw resistive load bank 400v 3 phase 4 wire for diesel generator testing 0
